Brute Force Commercial Pro Series 26-24 Re Split Wood Splitter w/ attached Conveyor
The next in the line of the commercial wood splitter is the Re-Split. Splitting large rounds happens and requires time to reset the round to re-split. Time is money, so this splitter resets and re-splits the wood for you.
Now you can make even-sized firewood easier and quicker, in turn maximizing your profits. This log splitter comes standard with a hydraulically adjustable box-type splitting wedge with pull back arm and hydraulic log lift that can be mounted on either side of the machine.
The 26-24 Re-Split comes standard with the following equipment: our fast-split splitter cylinder, auto-cycle splitter, and a 48 gpm double hydraulic pump. Also standard is an integrated 10′ conveyor and torsion axle. This unique splitter makes even-sized firewood without the need to re-split.
Request A QuoteSTANDARD FEATURES
- Hydraulically adjustable box splitting wedge
- Hydraulic Log Lift- either side mounts
- Fast Split & Auto Cycle
- Durable Phenolic wear slides

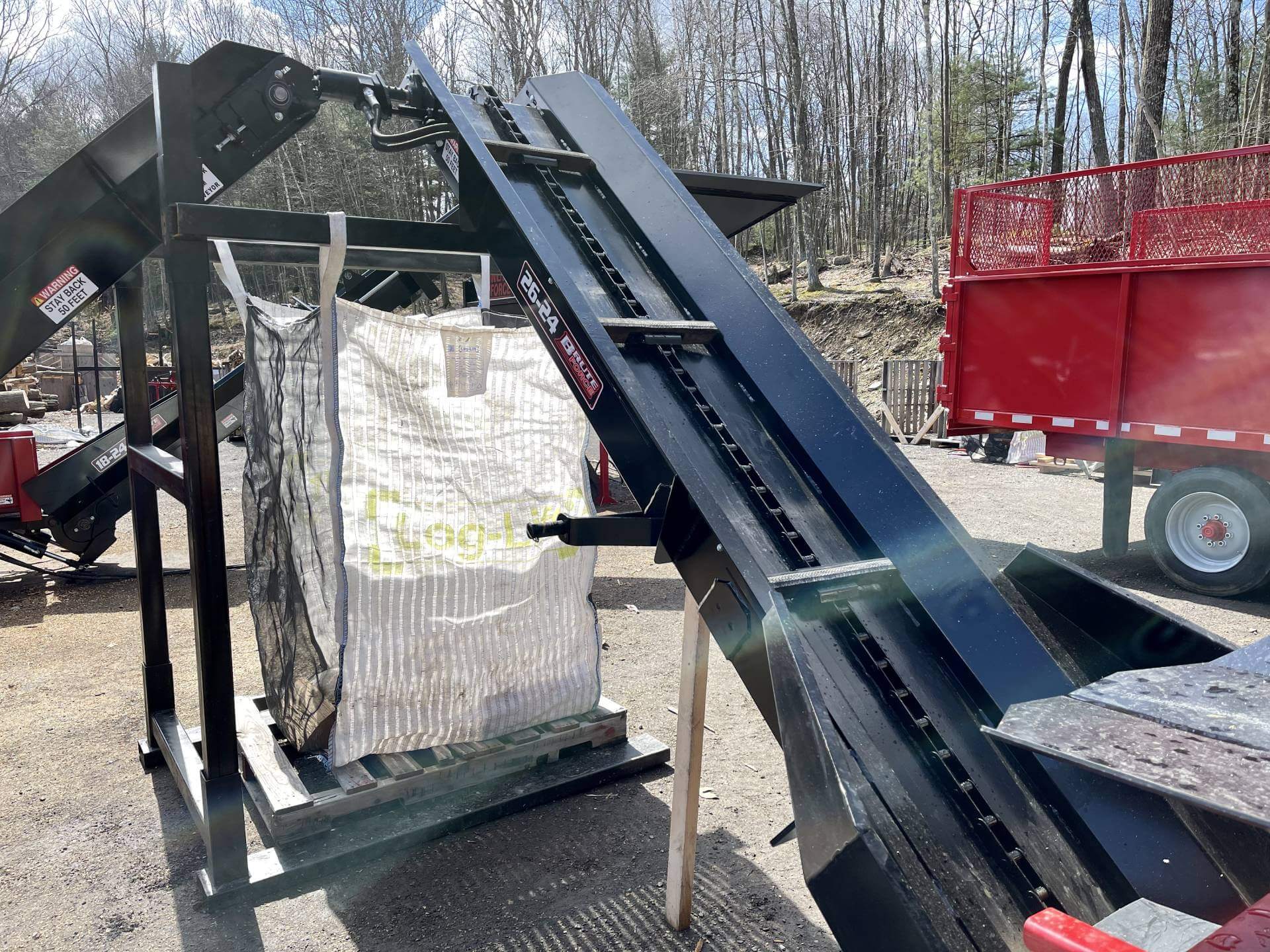

- 10’ conveyor

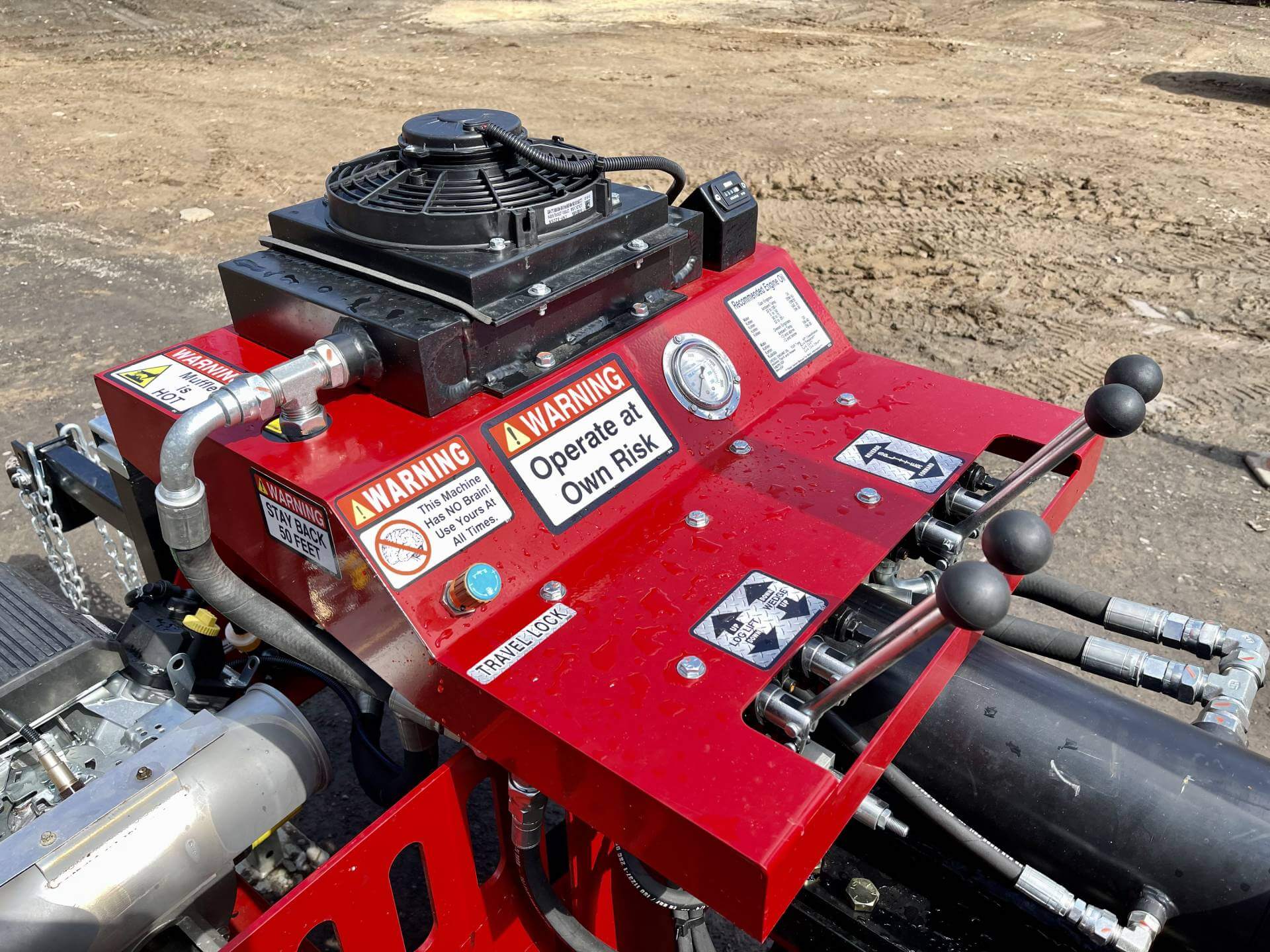

- Centrally Located Control Panel for Left or Right-Side Operation

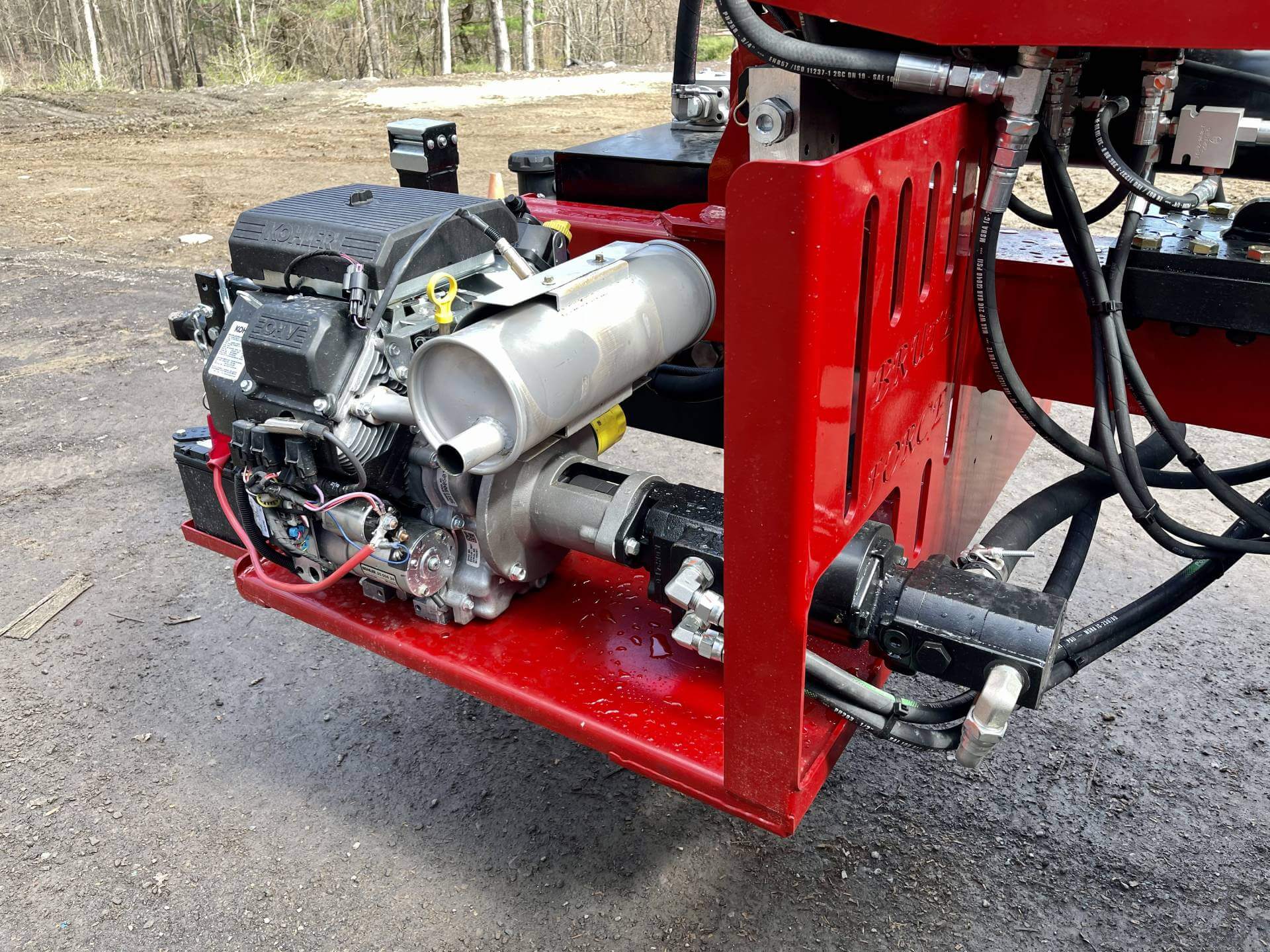

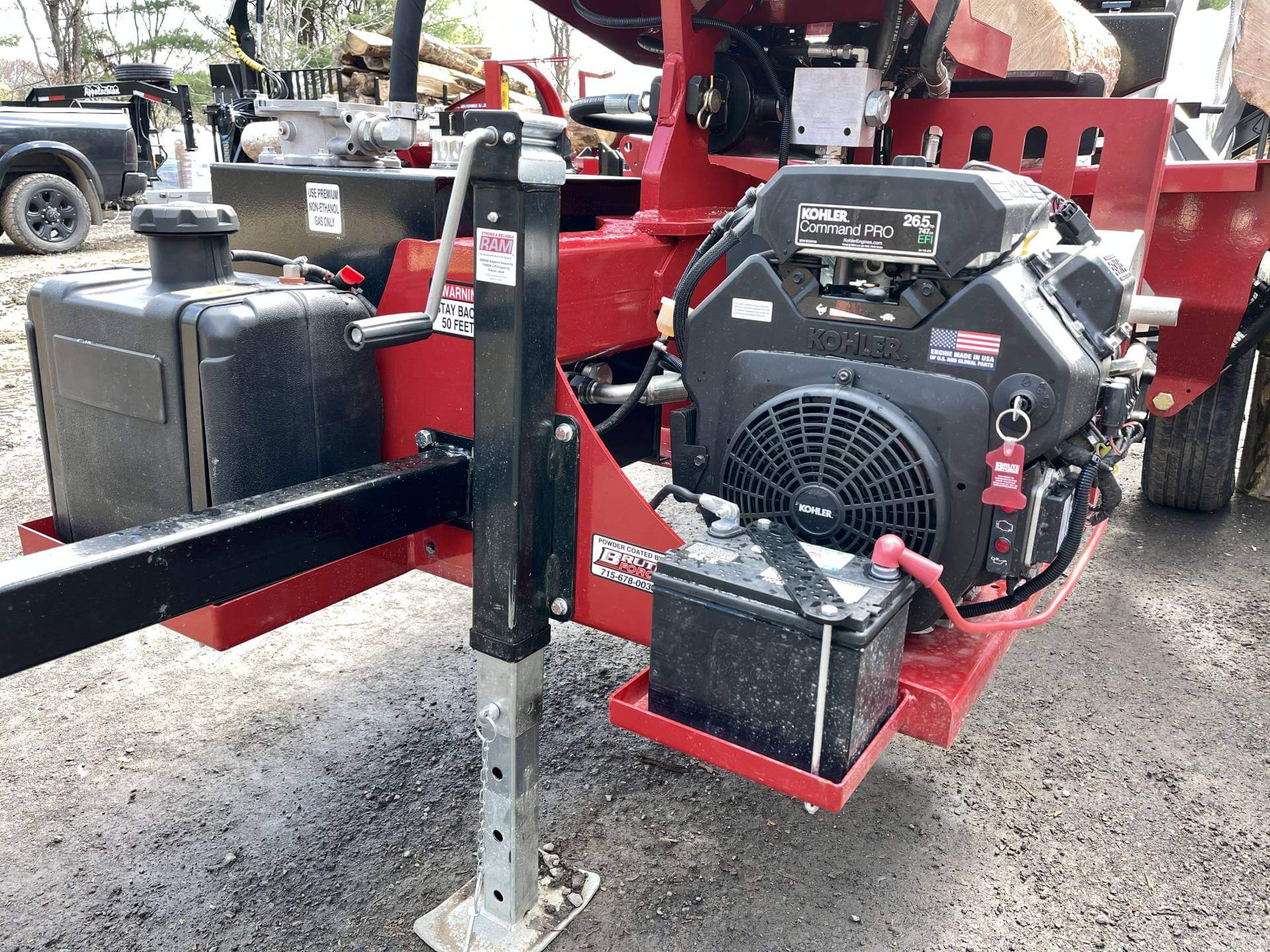

- 26.5 EFI Kohler Engine w/ Hyd. Cooler
- Torsion Axle

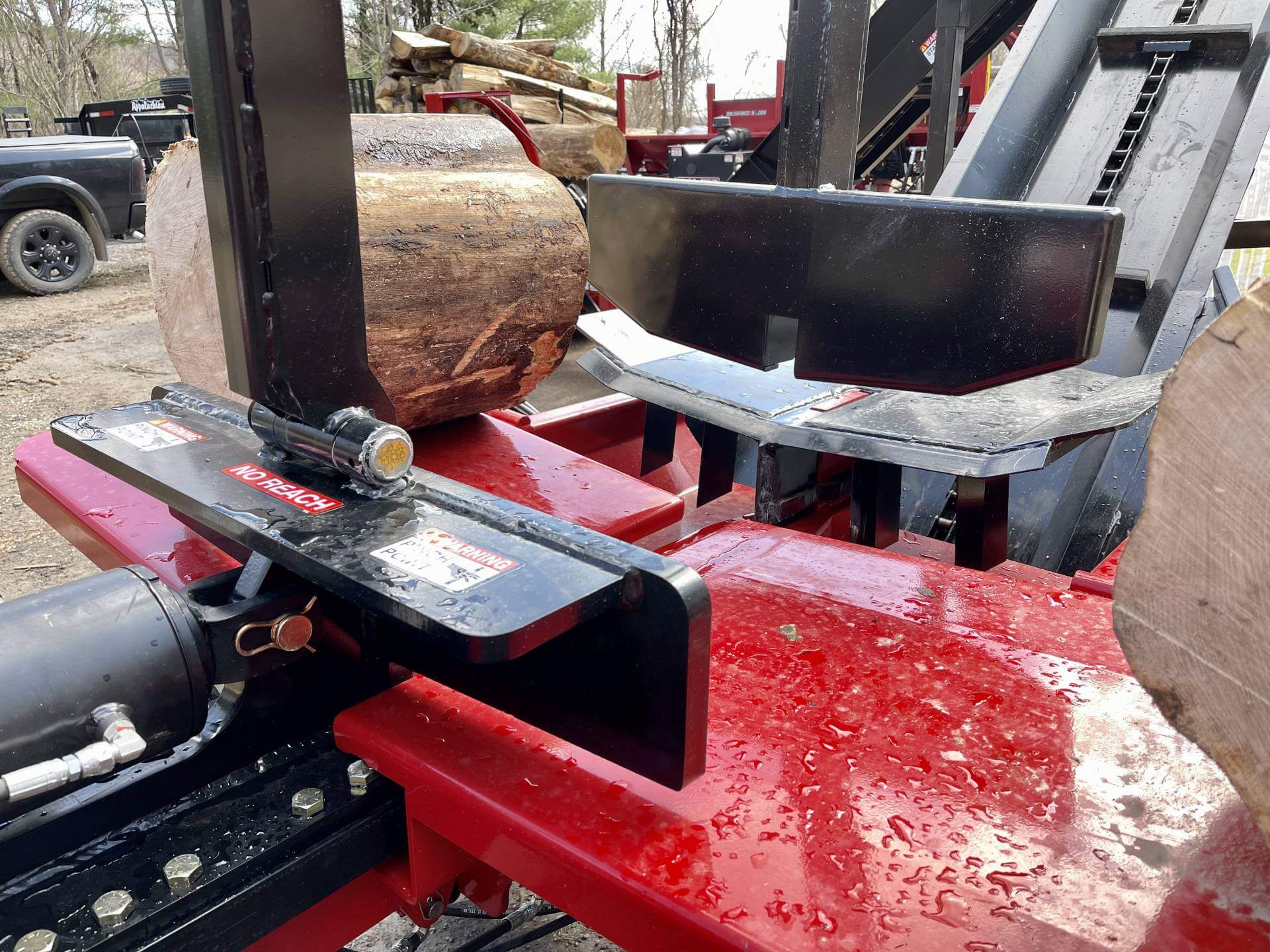

- Hydraulic Adjustable Box Wedge w/ Pull back Arm
- Heavy Duty Sorting Table
- Oil Cooler
- 1 Yr Warranty
OPTIONAL FEATURES
- 6 Way wedge
- 8 Way Wedge
- 12’ Conveyor
- Custom Color
SPECIFICATIONS
- Hydraulic Pump: 48 GAL/MIN Double Pump
- Prince Hydraulic Relief Valve
- Splitting Cylinder Length: 24″
- Splitting Cylinder Diameter:5″
- 30 Ton Splitting Force
- Hydraulic Reservoir Cap: 25 Gal
- Fuel cap: 7 Gal. Non-Ethanol Gas
DIMENSIONS
- Width: 6’ 8”
- Length with Tongue/Hitch: 17’ 6”
- Height: 11’ 6”
- Gross Weight: 3400 LBS
- 2″ Ball Standard
