First portable sawmill of its lineage that can work with two logs at a time

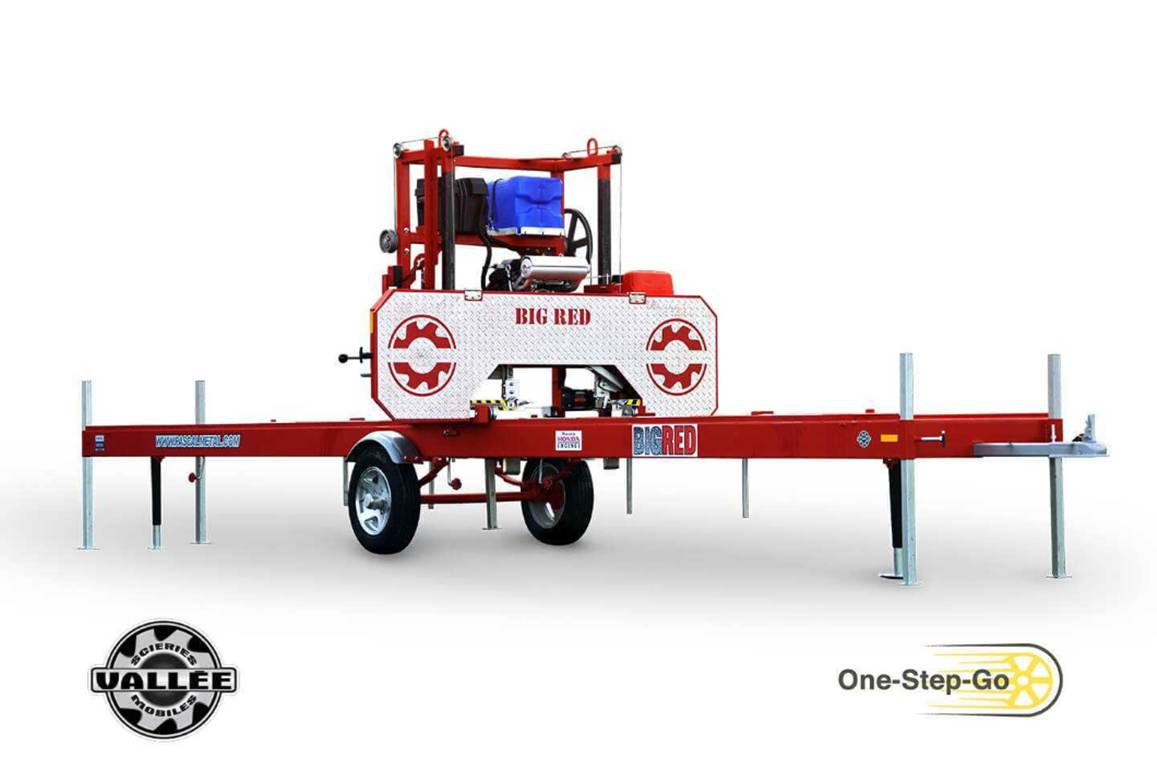

Vallee Forestry Equipment Big Red

First portable sawmill of its lineage that can work with two logs at a time, powered by a 13 HP Honda motor. Here are some of the benefits and features of the product:

  • Most popular portable sawmill, all parts necessary are included
  • It can cut logs up to 21 feet long with 30 inches diameter
  • Electric Saw Head positioning and Auto-Lock Saw head
  • The Big-Red saw 2 logs at the same time, a revolution in the industry
  • User-friendly One-Step-Go feature exclusive on every Vallee’s sawmills
Request A Quote

SPECIFICATIONS

ENGINE

  • 13 HP Honda GX390 Premium
  • Electric start with 18 amps/200Watts
  • Gasoline, air cooled, 4 stroke, two cylinders, OHC
  • 3 years Warranty by Honda



SAW HEAD

  • Maximum diameter of log 30 inches
  • Maximum width of planks 21 inches
  • Blade of 157’ ½ x 1 1/4 APEX RF, 3 Blades are included
  • Simple cam lock blade tensioning for fast and easy adjustment
  • Single, One piece solid front panel, for easy access blade maintenance
  • Electric Saw Head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical quality​
  • High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel
  • Large 7 gallons (26 liters) removable lubrification tank
  • High-Duty frame Construction, completely made of 2’’X2’’ solid welds
  • Large colored graduated ruler, details from ¾ up to 4 Inches,
  • 7/8 inch last board cut capability



ONE-STEP-GO

  • Auto-blade lube system automatically turns on and off fluid flow during operation
  • Automatic Blade-Brake system , maximize speed and the lifespan of your blades
  • Automatic engine throttle and saw Blade engagement.



BASE

  • 21 feet maximum board length, onto a 24 foot bed
  • Extra solid steel Tubing frame 2X6 3/16, completely welded with crosspieces, no joints
  • 8 conveyor rollers of 12 inches mounted on bearing coated with zinc plating
  • 4 Dog-Log, simple one hand cam-lock design
  • 4 integrated Toe Board, Allow to compensate the taper of a log without effort
  • 5 adjustable levelling stands for solid support

OPTIONAL FEATURES

ROAD OPTION

  • 4 adjustable jacks for maximum stability
  • 3000 lb suspension axels with aluminium wheels, 5.30-12 tyres and fenders
  • Drawbar with 2 inches trailer tongue, and 3500 lb security chain
  • All integrated turn signals
  • Illuminated license support
  • Certified D.O.T. reflective sticker
