The identical twin of the Green Monster 20 HP that comes with even more power

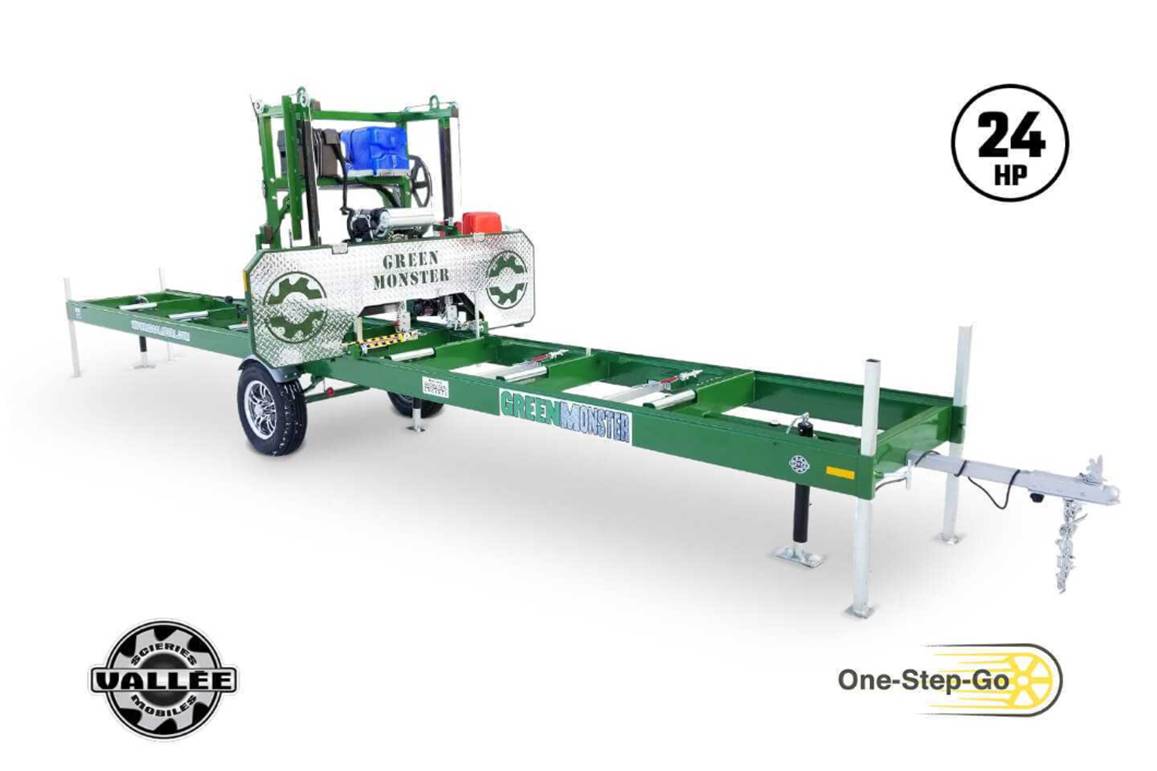

Vallee Forestry Equipment Green Monster 24HP

The identical twin of the Green Monster 20 HP that comes with even more power. Virtually no tree will resist this aggressive 24 HP motor. Here are some features and benefits of the product:

  • The most powerful portable sawmill
  • Includes a 24 HP Honda GX690 motor
  • 3-year warranty
  • The Green Monster can saw 2 logs at the same time, a unique feature in the industry
  • User-friendly One-Step-Go feature exclusive on every Vallee’s sawmills
Request A Quote

SPECIFICATIONS

ENGINE

  • 24 HP Honda GX690 premium
  • Electric start with 18 amps/200Watts
  • Gasoline, air cooled, 4 stroke, one cylinder, OHC
  • 3 years Warranty by Honda



SAW HEAD

  • Maximum diameter of log 35 inches
  • Maximum board width 27 inches
  • Blade of 171 x 1 1/2 APEX RF, 3 Blades are included
  • Hydraulic blade tensioner for maximal precision
  • Single, One piece solid front panel, for easy access blade maintenance
  • Electric Saw Head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical quality​​
  • High grade triple bearing blade-guide, Zinc design and adapted for heavy usage, with 20 inch wheels
  • Large 7 gallons (26 liters) removable lubrification tank
  • High-Duty frame Construction, completely made of 2’’X2’’ solid welds
  • Large colored graduated ruler, details from ¾ up to 4 Inches,
  • 7/8 inch last board cut capability



ONE-STEP-GO

  • Auto-blade lube system automatically turns on and off fluid flow during operation
  • Automatic Blade-Brake system , maximize speed and the lifespan of your blades
  • Automatic engine throttle and saw blade engagement.



BASE

  • 21 feet maximum board length, onto a 24 foot bed
  • Extra solid steel Tubing frame 2X6 3/16, completely welded with crosspieces, no joints
  • 8 conveyor rollers of 12 inches mounted on bearing coated with zinc plating
  • 4 Dog-Log, simple one hand cam-lock design
  • 4 integrated Toe Board, Allow to compensate the taper of a log without effort
  • 5 adjustable levelling stands for solid support

OPTIONAL FEATURES

EXTENDED BASE

  • Four foot extra length of cut capability
  • The lengths of all additional tubing in extra solid steel 2X6 3/16, crosspieces and accessories required



ROAD OPTION

  • 4 adjustable jacks for maximum stability
  • 3000 lb suspension axels with aluminium wheels, radial ST 175/80r12 tyres and oversized fenders
  • Drawbar with 2 inches trailer tongue, and 3500 lb security chain
  • All integrated turn signals
  • Illuminated license support
  • Certified D.O.T. reflective stickers
