Little Blue HD can cut logs up to 17 feet long with 30 inches diameter

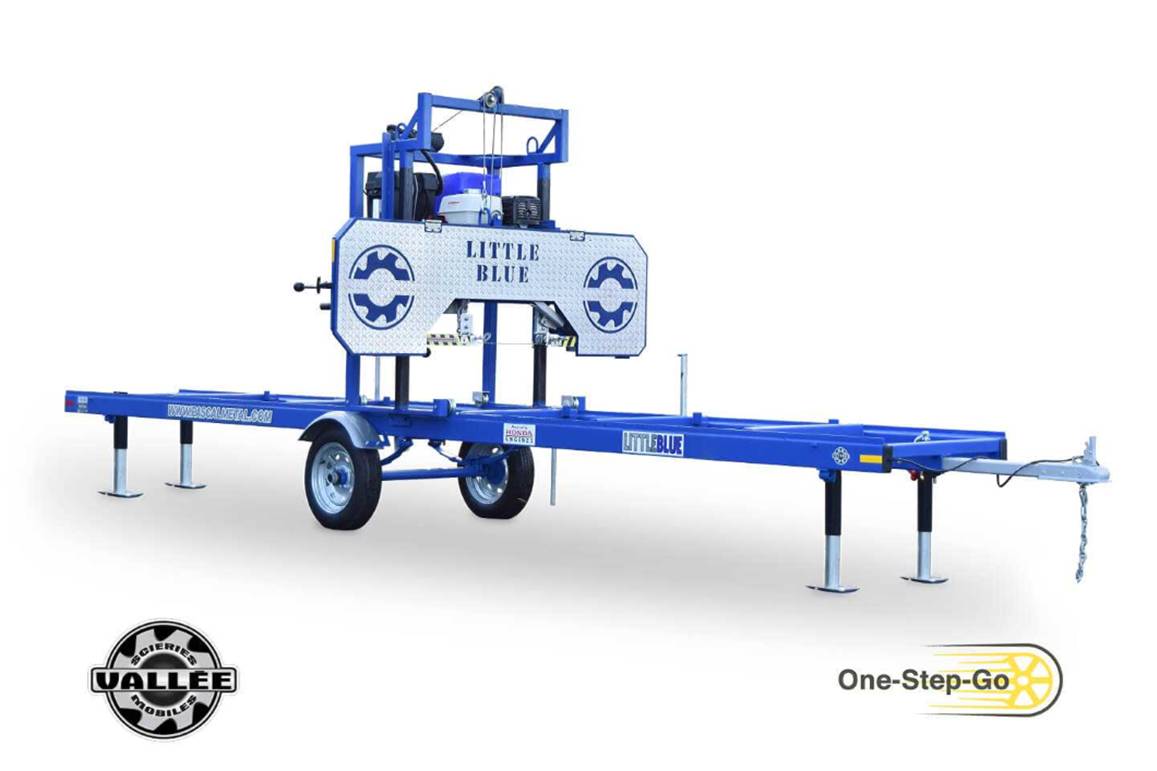

Vallee Forestry Equipment Little Blue HD

The complete replica of the regular Little Blue, but with a thicker 3/16 frame, perfect for the heavier logs. Here are some benefits and features of the product:

  • The most affordable and complete portable sawmill
  • Honda 13 horsepower motor and  3-year warranty electric starter
  • Solid steel Tubing frame 2X4 3/16
  • Electric winch head positioning
  • Little Blue HD can cut logs up to 17 feet long with 30 inches diameter
  • User-friendly One-step-Go feature exclusive on every Vallee’s sawmills
Request A Quote

SPECIFICATIONS

ENGINE

  • 13 HP Honda GX390 Premium
  • Electric start with 18 amps/200Watts
  • Gasoline, air cooled, 4 stroke, one cylinder, OHC
  • 3 years Warranty by Honda



SAW HEAD

  • Maximum Diameter of log, 30 inches
  • Maximum width of board, 21 inches
  • Blade of 157’ ½ x 1 1/4 APEX RF, 2 Blades are included
  • Electric Saw Head positioning, with Auto-Lock 4000 lb high quality electric winch
  • Simple cam lock blade tensioning for fast and easy adjustment​
  • Single, One piece solid front panel, for easy access blade maintenance
  • High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel
  • Large 7 gallons (26 liters) removable lubrification tank
  • Super-Duty frame Construction, completely made of 2’’X2’’ solid welds
  • Large colored graduated ruler, details from ¾ up to 4 Inches,
  • 7/8 inch last board cut capability



ONE-STEP-GO

  • Auto-blade lube system automatically turns on and off fluid flow during operation
  • Automatic Blade-Brake system , maximize speed and the lifespan of your blades
  • Automatic engine throttle and saw Blade engagement.



BASE

  • 17 feet maximum board length, onto a 19 foot 1/2 bed
  • Solid steel Tubing frame 2X4 1/8, completely welded with cross members, no joints
  • 2 Dog-Log, simple one hand cam-lock design​​
  • 2 integrated Toe Board, allow to compensate the taper of a log without effort

OPTIONAL FEATURES

EXTENDED BASE

  • Four foot extra length of cut capability
  • The lengths of all additional tubing in solid steel 2X4 1/8, crosspieces and accessories required



ROAD OPTION

  • 6 adjustable jacks for maximum stability
  • 2000 lb suspension axels, tires 4.80-12, Galvanized wheels and fenders
  • 2 inchesTrailer tongue and 3500 lb security chains
  • All integrated turn signals
  • Illuminated licence support
  • Certified D.O.T. reflective stickers
