The identical twin of the Rebel 9HP but with even more power and bigger potential

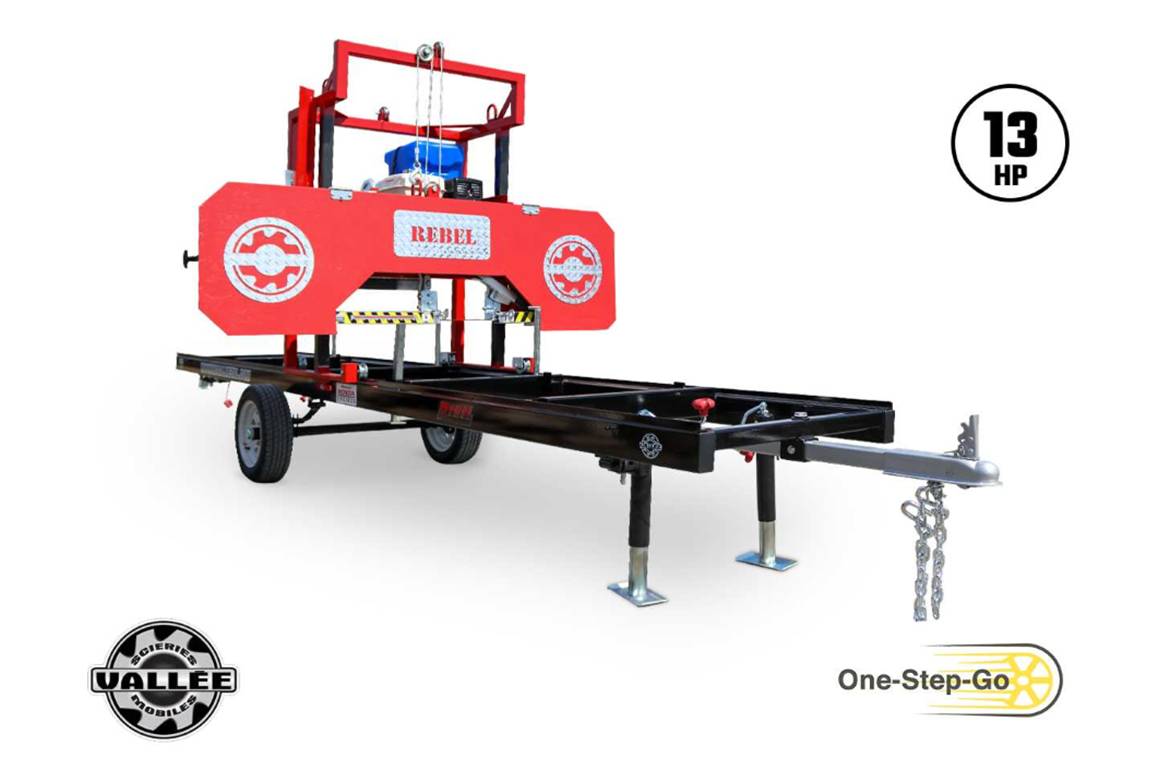

Vallee Forestry Equipment Rebel 13HP

The identical twin of the Rebel 9HP comes with even more power and bigger potential.

  • The entry-level portable sawmill doesn’t back down from a lot
  • Honda 13 HP motor with a 3-year warranty manual starter
  • Manual winch head positioning
  • Rebel can cut logs up to 13 feet long with 30 inches diameter
  • User-friendly One-step-Go feature exclusive on every Vallee’s sawmills
Request A Quote

SPECIFICATIONS

ENGINE

  • 13 HP Honda GX390 Premium
  • Manual start
  • Gasoline, air cooled, 4 stroke, one cylinder, OHC
  • 3 years Warranty by Honda



SAW HEAD

  • Maximum diameter of log 30 inches
  • Maximum width of planks 21 inches
  • Blade of 157’ ½ x 1 1/4 APEX RF, 1 Blade included
  • Simple cam lock blade tensioning for fast and easy adjustment
  • Single, One piece solid front panel, for easy access blade maintenance
  • Manual head positioning with a 1700 lb winch capability
  • High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel
  • Large 7 gallons (26 liters) removable lubrification tank
  • High-Duty frame Construction, completely made of 2’’X2’’ solid welds
  • Large colored graduated ruler, details from ¾ up to 4 Inches,
  • 7/8 inch last board cut capability



ONE-STEP-GO

  • Auto-blade lube system automatically turns on and off fluid flow during operation
  • Automatic Blade-Brake system , maximize speed and the lifespan of your blades
  • Automatic engine throttle and saw Blade engagement.



BASE

  • 13 feet maximum board length, onto a 16 foot bed
  • Solid steel Tubing frame 2X4 1/8, completely welded with cross members, no joints
  • 2 Dog-Log, simple one hand cam-lock design



EXTENDED BASE

  • Four foot extra length of cut capability
  • The lengths of all additional tubing in solid steel 2X4 1/8, crosspieces and accessories required

OPTIONAL FEATURES

MOBILE OPTION

  • 4 adjustable jacks for maximum stability each corner
  • 1 adjustable central levelling stand for solid support
  • 12 inch wheel/tire low speed rating (maximum 70 km/h)



EXTENDED BASE

  • Four foot extra length of cut capability
  • The lengths of all additional tubing in solid steel 2X4 1/8, crosspieces and accessories required
